| Модель | B | C | L | H | H1 | S | N | F | F1 | X | Y | Z |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M1 10 | 440 | 490 | 703 | 874 | 470 | 120 | 748 | 814 | 178 | 312 | 378 | 400 |
| M1 12 | 440 | 490 | 703 | 974 | 570 | 120 | 848 | 914 | 178 | 312 | 378 | 500 |
| M1 14 | 440 | 490 | 703 | 1074 | 670 | 120 | 948 | 1014 | 178 | 312 | 378 | 600 |
| M1 16 | 440 | 590 | 803 | 974 | 570 | 120 | 848 | 914 | 178 | 312 | 478 | 500 |
| M1 22 | 440 | 590 | 803 | 1074 | 670 | 120 | 948 | 1014 | 178 | 312 | 478 | 600 |
| SKU | M1_16 |
|---|---|

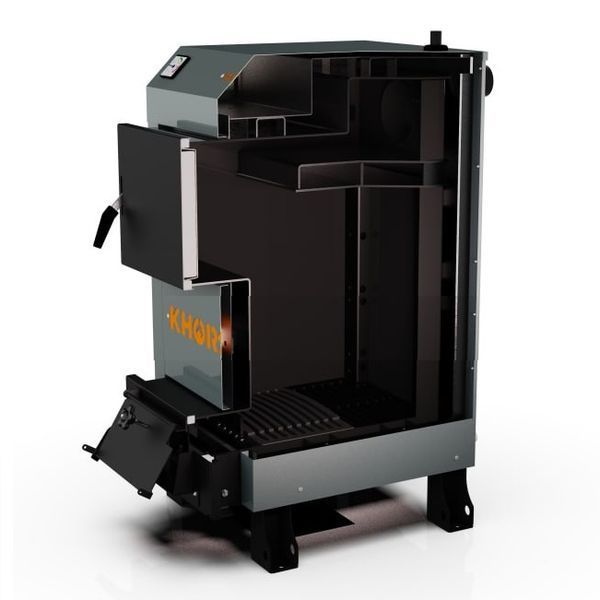

| Brief description | Solid fuel boiler KHORS M1 16 kW for heating rooms up to 160 sq.m. Works on wood and coal. Electric heater and safety valve are installed. |
| Brand | KHORS |
| Kraina virobnik | Ukraine |
| Equipment type | Solid fuel boiler |
| Type of work | Traditional burning |
| Assignment | Heating |
| Product condition | New |
| Warranty period, month | 36 |
| Pushing | 16 kW |
| Heating area | 80 m², 90 m², 100 m², 120 m², 140 m², 160 m² |
| Convection heat exchanger area | 1,09 m² |
| Total area of convection and radiation component | 2,1 m² |
| Efficiency not less, firewood/coal | 82 / 86 % |
| Weight | 136 kg |
| Material | Steel |
| Heat exchanger size | 4 mm |
| Nominal (recommended) system pressure | 1,5 bar |
| Test pressure | 3,5 bar |
| Volume of water | 96 l |
| Recommended minimum coolant capacity in the system | 320 l |
| Load volume | 79 l |
| Optimal fuel consumption | 1,48 kg/hour |
| Outer diameter of the drill bit | 127 mm |
| Chimney height (minimum for natural draft) | 4,5 m |
| Exhausted to the heat of the heat | 3/4" Internal |
| Attachment of shut-off valve | 1/2" External |
| Attached draft regulator | 3/4" Internal |
| Joining a group of TENs | 1 1/2" Internal |
| Grate grates | Cast iron |
| Port under the torch tip | No |
